Fitment Options





(muffler/end cap length and orientation may vary, see bike image for accurate representation)



	(2015-2024) S1R Standard Carbon Part Number 005-4160105-S1
	(2015-2024) S1R Black Aluminum Part Number 005-4160106-S1B



Description

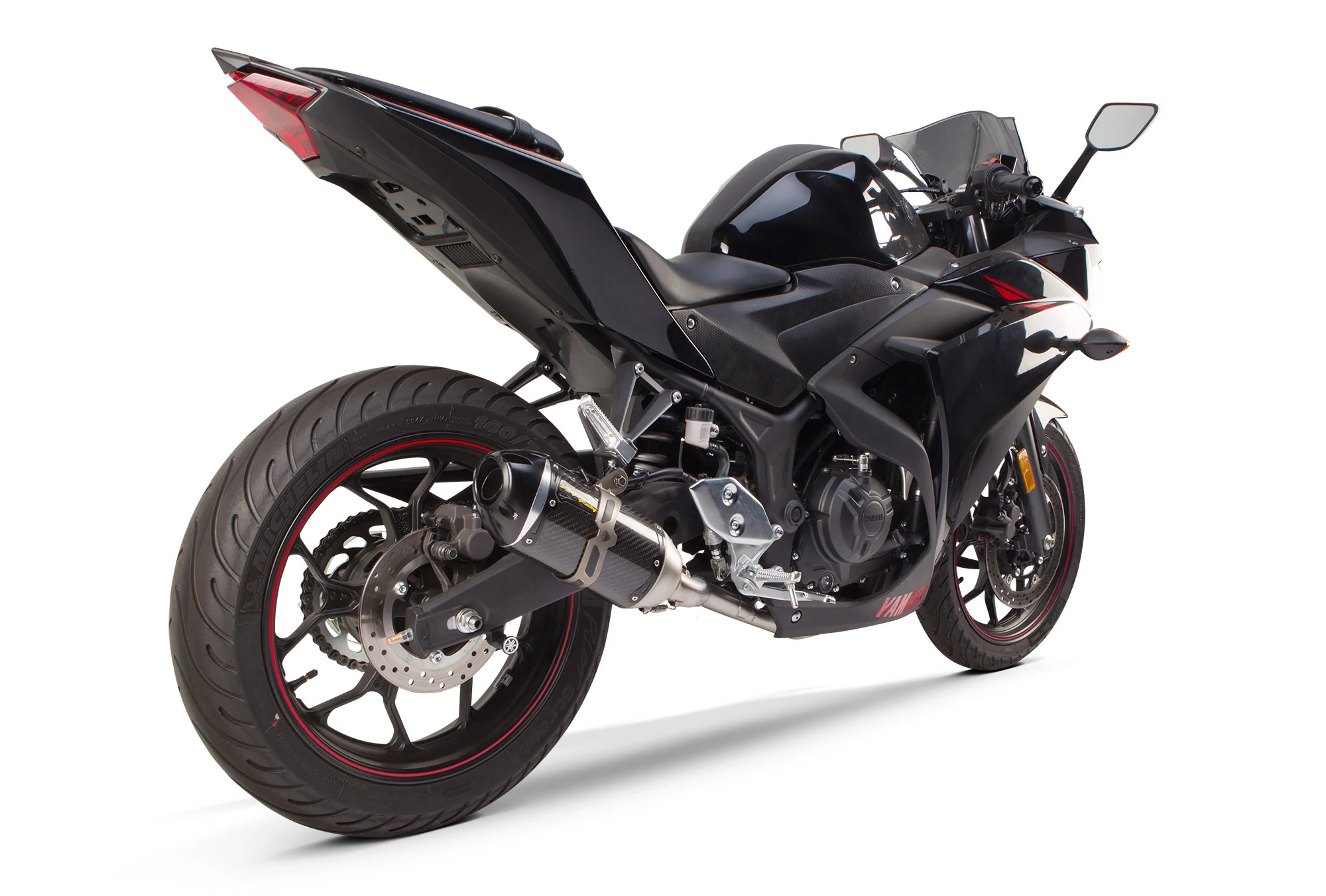

Like all of our products, our R3 full exhaust system was developed to surpass what is offered on the market today. Engineered to compliment the quality and performance of Yamaha’s products, this handcrafted system delivers unparalleled sound and performance for the ultimate race experience.



Exhaust Features:

• Aluminum or Carbon Fiber
• Aerospace High-Temp Carbon Fiber
• Teflon Coated Magnesium End-Cap
• Stamped Spring-Fit Inlet
• Aluminum CNC Machined outlet
• Rubber-Lined Styled Mount
• Spiral-Wound Perforated Core
• Unparalleled Sound
•



Performance Specs

Peak HP Max HP Peak Torque Max Torque Weight O2 Sensor dB Level

Stock 37.33 hp -- 20.02 ft-lbs -- 17.5 lbs Yes 77.5 dB @ 2000 rpm

TBR 39.38 hp 2.8 hp @ 11500 rpm 20.46 ft-lbs 1.2 ft-lbs @ 5500 rpm 6.5 lbs Yes 91 dB @ 2000 rpm

Difference +2.05 hp -- +0.44 ft-lbs -- -11 lbs -- --
