S1R Fitment Options

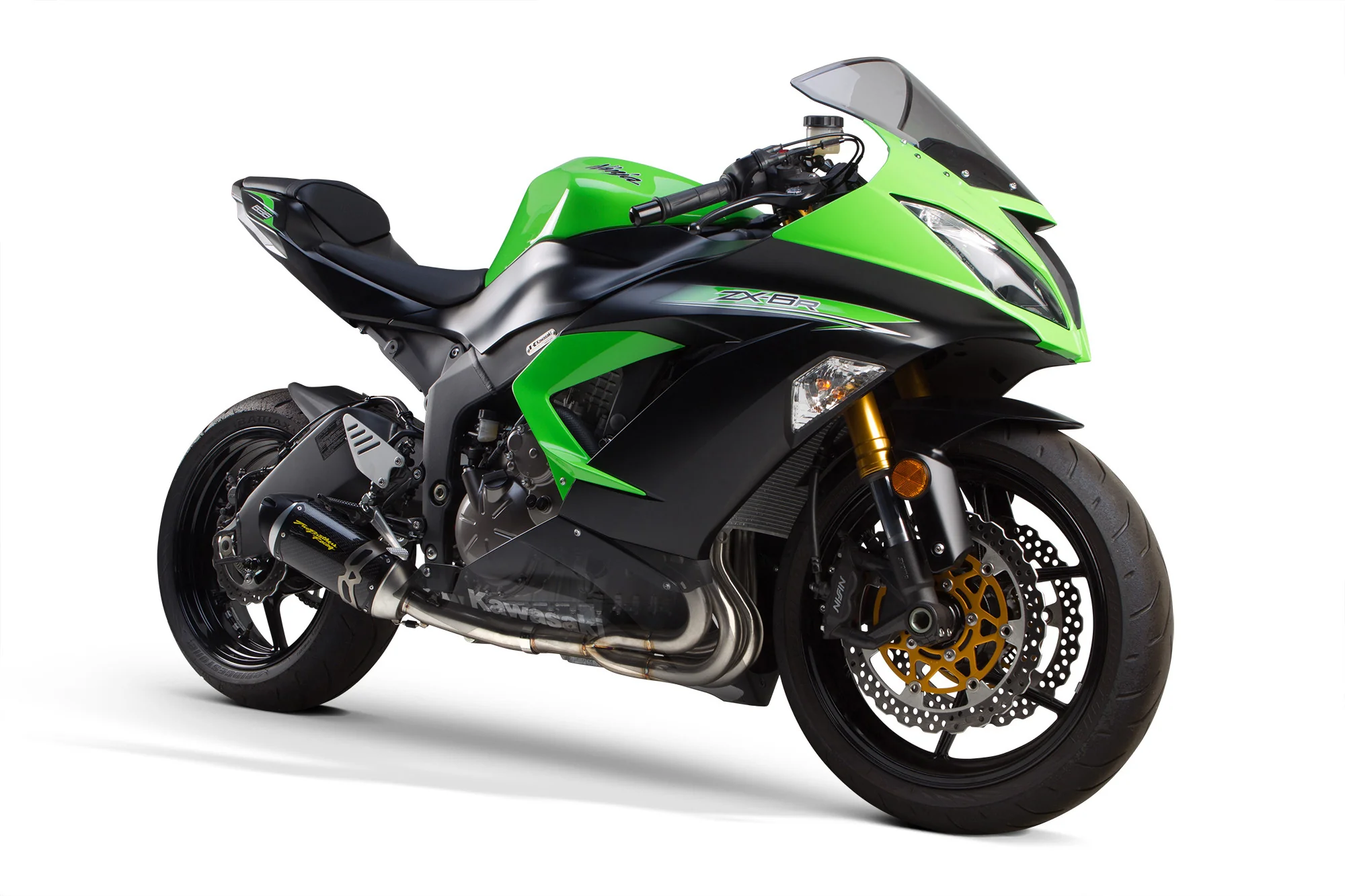

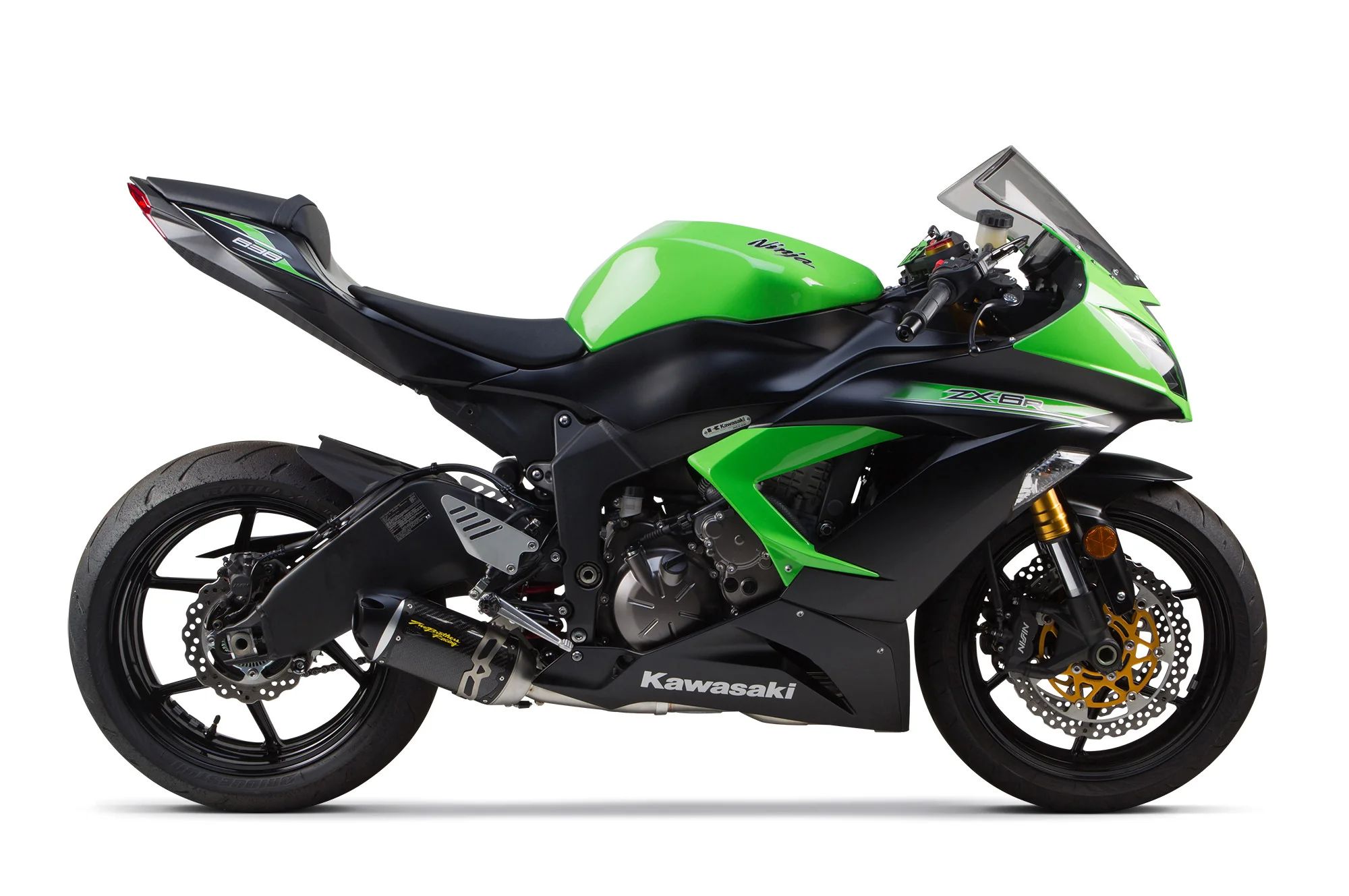

(muffler/end cap length and orientation may vary, see bike image for accurate representation)



	(2009-2025) ZX-636R/6RR S1R Standard Carbon Part Number 005-3860105-S1
	(2009-2025) ZX-636R/6RR S1R Black Aluminum Part Number 005-3860106-S1B
	(2009-2025) ZX-636R/6RR S1R 3K Black Carbon Part Number 005-3860105-S1B



Description



Like all of our products, our ZX-636R/6RR full exhaust system was developed to surpass what is offered on the market today. Engineered to compliment the quality and performance of Kawasaki’s products, this handcrafted system delivers unparalleled sound and performance for the ultimate race experience.



Exhaust Features:

• Aluminum or Carbon Fiber
• Aerospace High-Temp Carbon Fiber
• Teflon Coated Magnesium End-Cap
• Stamped Spring-Fit Inlet
• Aluminum CNC Machined outlet
• Rubber-Lined Styled Mount
• Spiral-Wound Perforated Core
• Unparalleled Sound
• 2019+ will need to bypass o2 sensor
•



Performance Specs

Peak HP Peak Torque Max HP Gain Max Torque Gain Weight

Stock 112.7 hp 45.6 ft-lbs -- -- 25 lbs

TBR 120.6 hp 47.1 ft-lbs 9 hp @ 15000 rpm 3.9 ft-lbs @ 6300 rpm 9 lbs

Difference +7.9 hp +1.5 ft-lbs +9 +2.9 -16 lbs



Instructions



**CLICK HERE FOR INSTRUCTIONS**



Sound Clip
